H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

Certification : ROHS

Material : Flange :spruce/fir wood , Web:poplar plywood

Price : US $5.90 - 6.80/ Square Meter

Packaging Details : Bundled / Tied in bundles/Optimization of container loading

Shear Capacity (broken loading) : 24KN

Height : 20cm

Supply Ability : 1000 piece in 10 days

Color : yellow

MOQ : 50 piece

Bending Bearing Moment : 11KN M

Length : 900mm-5900mm

Payment Terms : T/T

web thickness : 27mm or 30mm

Delivery Time : 10-30 workday

Width : 8cm

Place of Origin : Hebei,China

Wood type : Finland Spruce/fir&plywood

Brand Name : WKS

Product name : Timber Beam Formwork

Contact Now

H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

Best Custom H20 Timber Beam - High Load Capacity, Lightweight Formwork Support

The H20 Timber Beam is a high-performance load-bearing component engineered for concrete formwork systems. Featuring double-web construction and finger-jointed solid wood flanges, it provides exceptional strength-to-weight ratio for slab, wall, column, and bridge formwork in residential, commercial, and infrastructure projects.

Key Advantages

Lightweight Design - Only 4.5-5.5 kg per meter; easy manual handling
High Load Capacity - 11-15 kN bending capacity with minimal deflection
Long Service Life - Up to 10+ years with proper care and maintenance
Double-Web Construction - Superior bending and shear resistance
Water-Resistant Glue Bond - WBP (Water & Boil Proof) for outdoor use
Easy On-Site Customization - Can be trimmed to required lengths with standard tools

Customization Capabilities

All products support project-based customization:

Length: 2.45m, 2.90m, 3.30m, 3.60m, 3.90m, 4.50m, 5.90m (custom available)
Flange material: Solid spruce or pine
Web material: 3-ply or 5-ply birch/poplar plywood
Glue grade: MR, WBP, or Phenolic resin
Moisture content controlled at ≤12%

Technical Specifications

Parameter	Specification
Beam Height	200mm (H20)
Flange Width	80mm
Web Thickness	27mm
Weight	4.5-5.5 kg/m
Load Capacity (Bending)	11-15 kN
Elastic Modulus	7500-8500 N/mm²
Moisture Content	≤12%
Glue Type	WBP (Water & Boil Proof)

Applications

Slab formwork (supporting joists and stringers), wall formwork (vertical backing beams), column formwork, bridge deck formwork, staircase and foundation formwork.

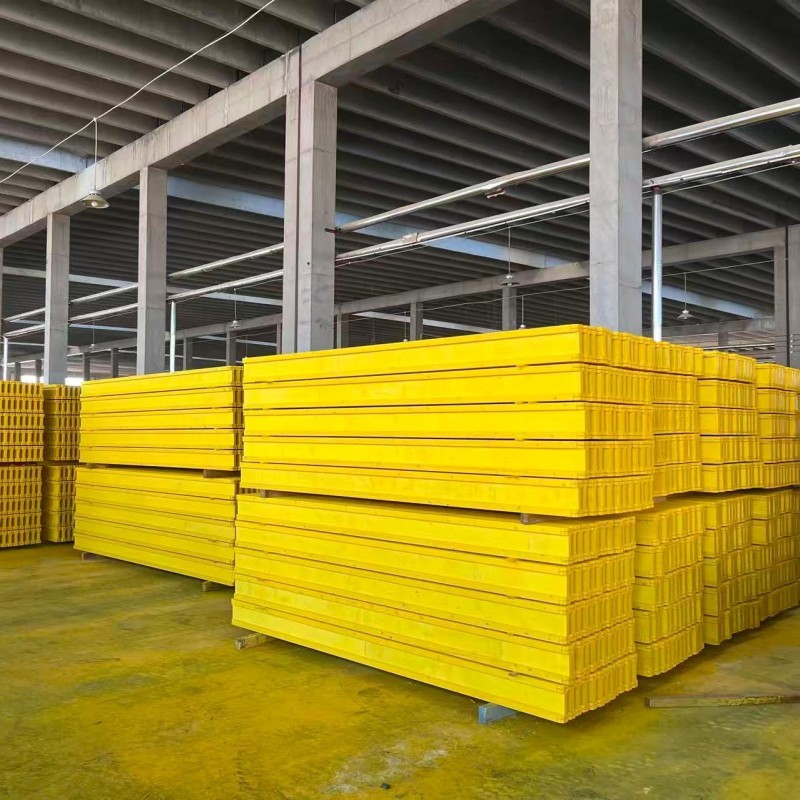

H20 Timber Beam for Concrete Wall Slab and Column Formwork Construction

Click 【Send Inquiry】 for custom solution & quotation
